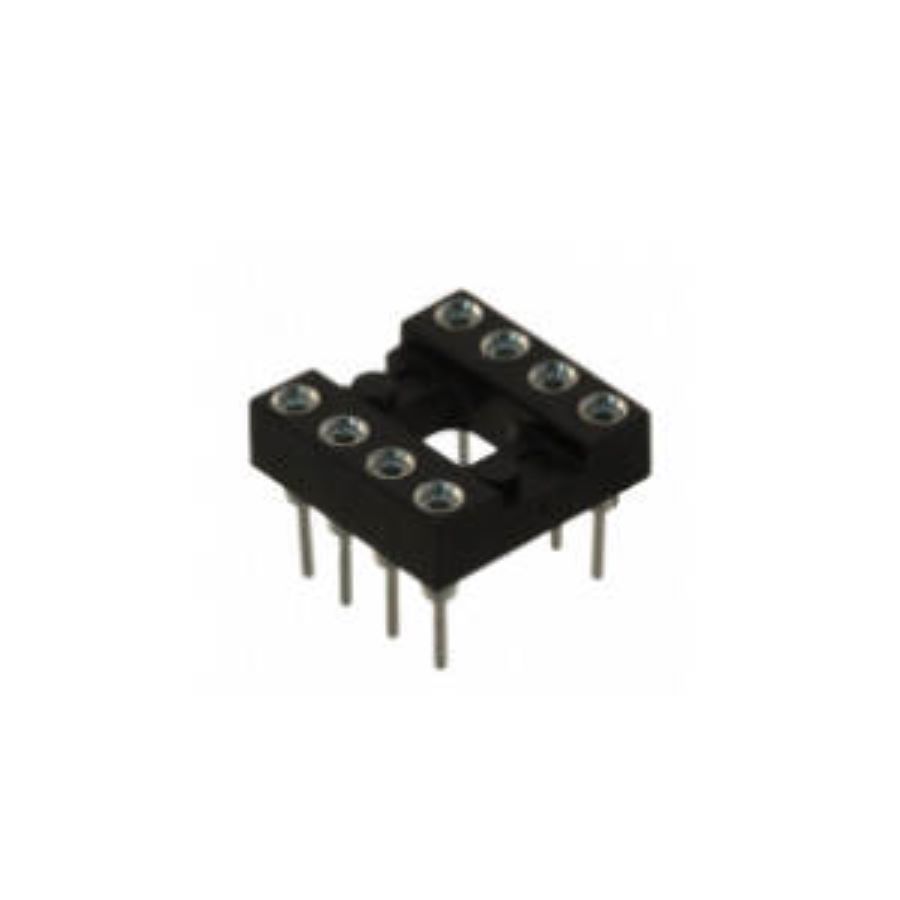

110-99-308-41-001000
Manufacturer:
Mill Max
Mfr.Part #:
110-99-308-41-001000
Datasheet:
Description:
Headers and Wire Housings Through Hole DIP, Socket Number of Positions:8 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 150 V |
| Length | 10.16 mm |
| Width | 10.16 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 100 V |
| Number of Pins | 8 |
| Packaging | Tube |
| Voltage Rating | 1000 V (1 kV) |
| Depth | 10.16 mm |
| Lead Free | Contains Lead |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Insulation Resistance | 10 GΩ |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Copper |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Number of Contacts | 8 |
| Body Material | PBT, Polybutylene, Polyester |
| Connector Type | DIP, Socket |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Row Spacing | 7.62 mm |
| Insulation Material | Polychlorinated |
| Housing Material | PBT |
| Contact Resistance | 10 mΩ |
Stock: 7893
Distributors
pcbx
pcbxUnit Price$0.45055
Ext.Price$0.45055
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.45055 | $0.45055 |
| 10 | $0.38044 | $3.80440 |
| 25 | $0.33940 | $8.48500 |
| 50 | $0.33118 | $16.55900 |
| 100 | $0.32316 | $32.31600 |
| 300 | $0.30513 | $91.53900 |
| 500 | $0.28811 | $144.05500 |
| 1000 | $0.25733 | $257.33000 |
| 3000 | $0.24537 | $736.11000 |
